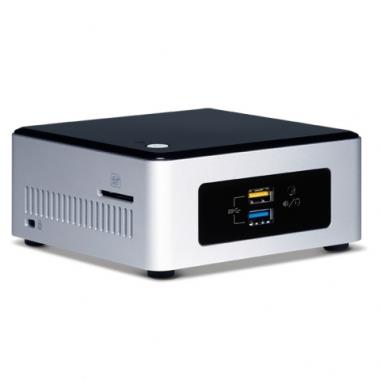

MINI PC INTEL NUC KIT N3700 FREE

** PRECIO DE REFERENCIA **

Product Collection
Intel® NUC Kit with Intel® Pentium® Processors

Code Name
Products formerly Pinnacle Canyon

Status
Launched

Launch Date
Q3'15

Supported Operating Systems
Windows 10, 64-bit*, Windows 8.1, 64-bit*, Windows 7, 64-bit*

Board Number
NUC5PPYB

Board Form Factor
UCFF (4" x 4")

Socket
Soldered-down BGA

Internal Drive Form Factor
2.5" Drive

# of Internal Drives Supported
1

Off Roadmap
No

Lithography
14 nm

TDP
6 W

DC Input Voltage Supported
12-19 VDC

Processor Included
Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)

Warranty Period
3 yrs

Recommended Customer Price
$172.00
Supplemental Information
Embedded Options Available
No

Datasheet
View now

Description
Other features: Includes SDXC card slot

Product Brief
View now

Memory & Storage
Max Memory Size (dependent on memory type)
8 GB

Memory Types
DDR3L-1333/1600 1.35V SO-DIMM

Max # of Memory Channels
1

Max Memory Bandwidth
12.8 GB/s

Max # of DIMMs
1

ECC Memory Supported ‡
No

Processor Graphics
Processor Graphics ‡
Intel® HD Graphics for Intel® Celeron® Processor N3000 Series

Integrated Graphics ‡
Yes

Graphics Output
VGA (HDB15); HDMI 1.4b

Intel® Clear Video Technology
Yes

# of Displays Supported ‡
2

Expansion Options
PCI Express Revision
Gen2

PCI Express Configurations ‡
M.2 slot with PCIe X1 lane

Removable Memory Card Slot
SDXC with UHS-I support

M.2 Card Slot (wireless)
22x30

I/O Specifications
# of USB Ports
6

USB Configuration
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

USB Revision
2.0, 3.0

USB 2.0 Configuration (External + Internal)
0 + 2

USB 3.0 Configuration (External + Internal)
2B 2F + 0

Total # of SATA Ports
1

Max # of SATA 6.0 Gb/s Ports
1

RAID Configuration
N/A

Audio (back channel + front channel)
7.1 digital (HDMI); L+R+mic (F); L+R+TOSLINK (R)

Integrated LAN
Realtek 8111HN

Integrated Wireless‡
Intel® Wireless-AC 3165 + Bluetooth 4.2

Integrated Bluetooth
Yes

Consumer Infrared Rx Sensor
Yes

S/PDIF Out Connector
TOSLINK

Additional Headers
2x USB2.0, AUX_PWR

Package Specifications
Chassis Dimensions
115 x 111 x 52mm

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes

TPM
No

Intel® HD Audio Technology
Yes

Intel® Virtualization Technology (VT-x) ‡
Yes

Intel® Platform Trust Technology (Intel® PTT)
Yes
