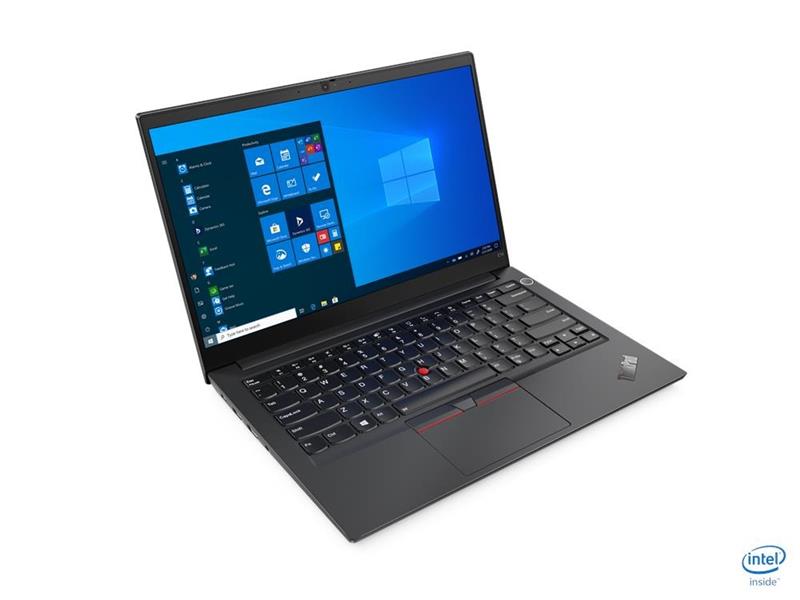

ThinkPad E14 Gen 2 (Intel)
Model : 20TA002CUS
PERFORMANCE
Processor Intel Core i5-1135G7 (4C / 8T, 2.4 / 4.2GHz, 8MB)
Graphics Integrated Intel Iris Xe Graphics Functions as UHD Graphics
Chipset Intel SoC Platform
Memory 1x 8GB SO-DIMM DDR4-3200
Memory Slots One DDR4 SO-DIMM slot
Max Memory Up to 32GB DDR4-3200
Storage 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
Storage Support "Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 512GB
• M.2 2280 SSD up to 1TB"
Storage Slot "Two M.2 slots
• One M.2 2242 PCIe 3.0 x4 slot
• One M.2 2280 PCIe 4.0 x4 slot"
Card Reader No card reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio, audio by HARMAN
Camera HD 720p with Privacy Shutter
Microphone 2x, Array
Battery Integrated 45Wh
Max Battery Life "MobileMark 2014: 11.9 hr
MobileMark 2018: 8.7 hr"
Power Adapter 65W USB-C (2-pin)
DESIGN
Display 14" FHD (1920x1080) IPS 250nits Anti-glare, 45% NTSC
Touchscreen None
Keyboard Backlit, English
Case Color Black
Case Material Aluminium (Top), Aluminium (Bottom)
Dimensions (WxDxH) 324 x 220 x 17.9 mm (12.76 x 8.66 x 0.7 inches)
Weight Starting at 1.64 kg (3.62 lbs)
SOFTWARE
Operating System Windows 10 Pro 64, English
Bundled Software None
CONNECTIVITY
Ethernet 100/1000M
WLAN + Bluetooth Intel Wi-Fi 6 AX201, 11ax 2x2 + BT5.1
WWAN None
SIM Card None
NFC None
Standard Ports "1x USB 2.0
1x USB 3.2 Gen 1 (Always On)
1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)
1x HDMI 1.4b
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)"
Docking "Various docking solutions supported via Thunderbolt.
For more compatible docking solutions, please visit
Docking for ThinkPad E14 Gen 2 (Intel)"
Monitor Cable None
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0
Fingerprint Reader Touch Style, Integrated in Power Button
Physical Locks Kensington Security Slot, 3 x 7 mm
Other Security Camera privacy shutter
MANAGEABILITY
System Management Non-vPro
SERVICE
Base Warranty 1-year, Courier or Carry-in
